Product Features:

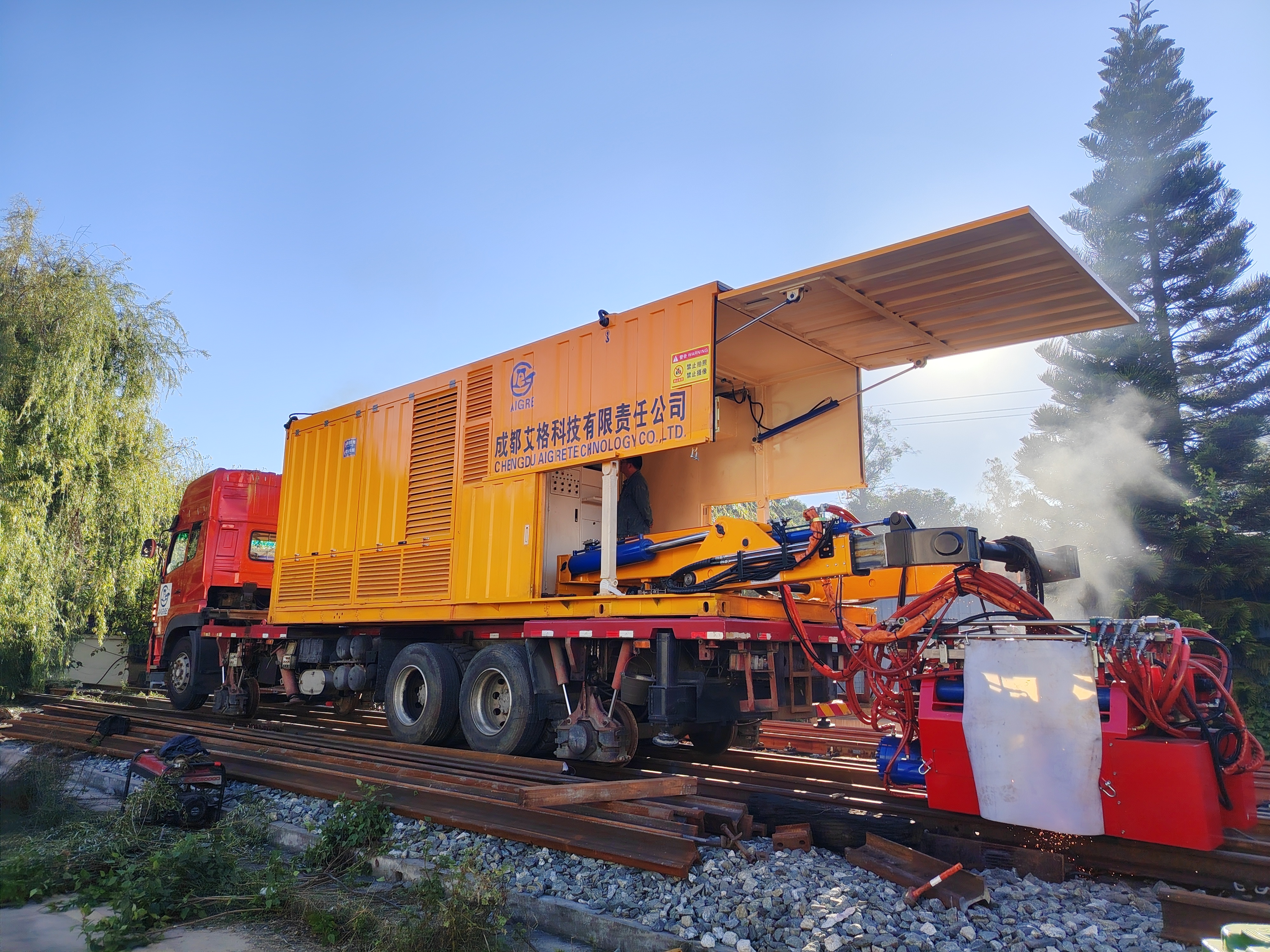

Primarily designed for flash welding of rail switch welds, this equipment features a specialized narrow-body clamp structure that enables operation in confined spaces with a minimum clearance of 130 mm.

Main Technical Parameters:

Maximum Weldable Rail Cross-Sectional Area (mm2): 10000

Rated Pressure of Hydraulic System (MPa): 25

Rated Upsetting Force (kN): 80

Maximum Clamping Force (kN): 2500

Weight of Welding Head (kg): 4500

Generator Set: 400 kW power, 400 V (50 Hz)

Overall dimension (length *width *height):

9-meter-long container: 9100*2438*2658mm

Double container: 6460*2680*2890mm

Generator container：5760*2680*2890mm
